Fada 790

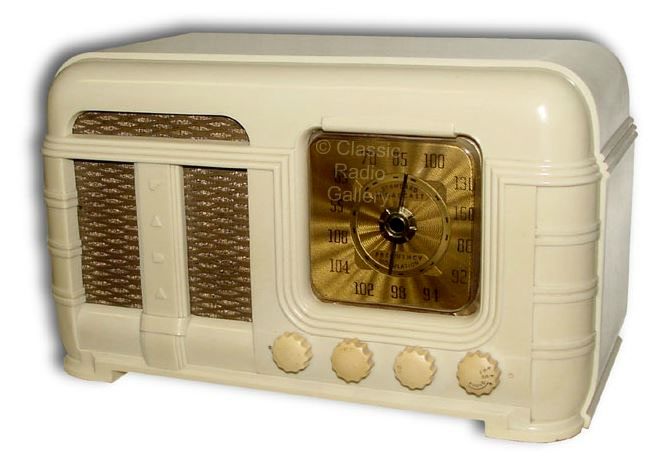

Fada Radio model 790, am-fm, white plaskon, 1949 with KTEQ-FM control
This is the Fada model 790 with a beautifully rounded white plaskon cabinet
that measures approximately 14.5 x 8.5 x 7 inches.
It included both AM and FM bands and was made circa 1949.
A brown walnut cabinet was also a choice.
It went through chassis revisions including the model 790 series B.
The cabinet design is a revival from a Fada pre-war design.
It was first offered in 1942 as the model 256 series, an AM / Shortwave radio.

(CLICK on the radio and listen to KTEQ-fm 91.3Mhz Rapid City from 1994)
(DOUBLE-CLICK to PAUSE/STOP)
Playlist: Van Morrison, Deep Purple, Todd Rundgren,
Quicksilver, Dust, Golden Earring (30min)


Fada 790 booklet cover page

See our FADA HISTORY page for much more information.

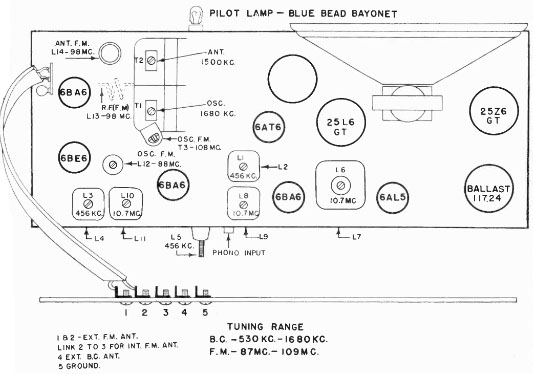

Fada 790 chassis diagram

Fada 790 schematic diagram

Fada model 790 SERIES B

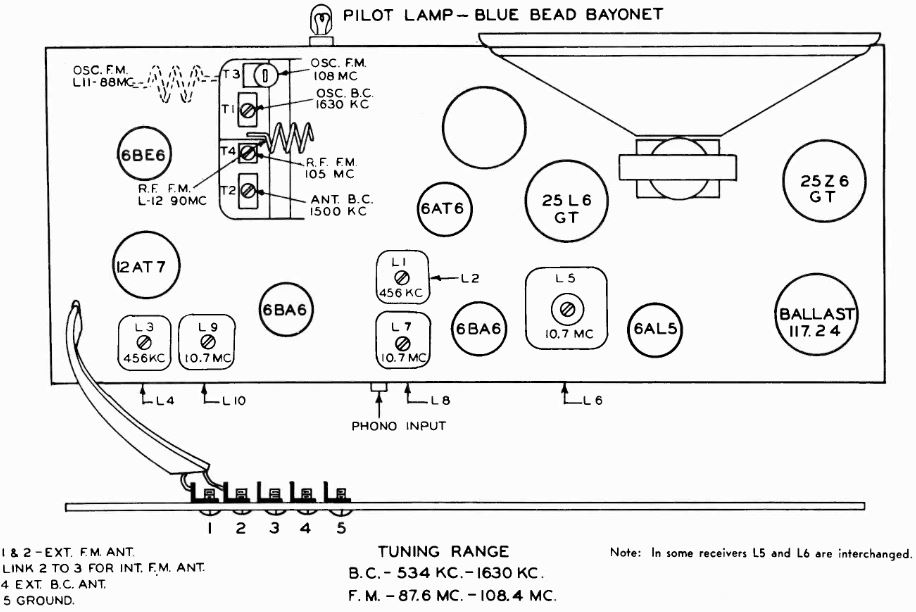

Fada 790 series B chassis diagram

Fada 790 series B schematic diagram
